Commercial

Water Source Heat Pump - Water-to-Air

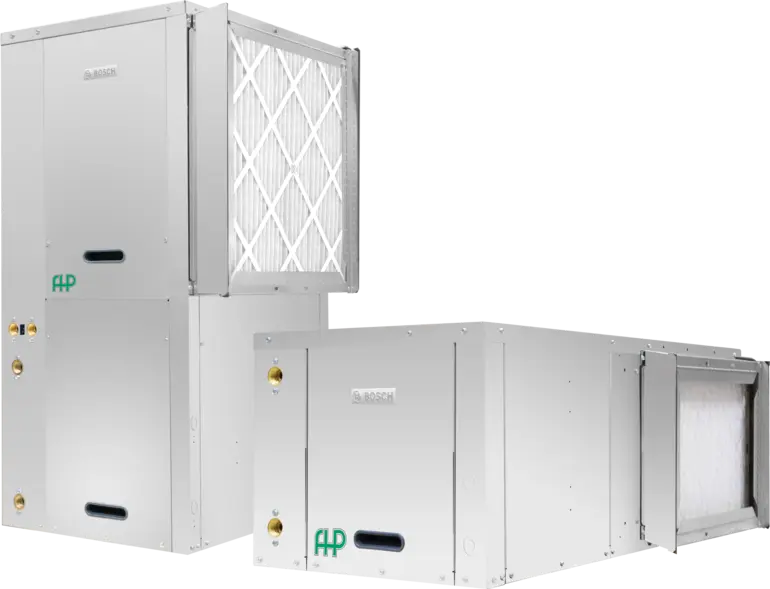

EP Series - Single Stage Mid Efficiency

Maximum options are available with the EP Model allowing you to get the best fit for your needs.

Quiet Comfort
Service Friendly
Robust and Durable Construction
Quality Design & Efficiency

Benefits

Features Designed for any Application

Industry-leading single-stage efficiencies, standard features, and a variety of options - providing energy efficient solutions to accommodate your building requirements. The EP Model, water-to-air heat pump offers high efficiency, value added features and a single stage compressor (scroll type 1 1/2 - 6 ton size). An optional ECM constant airflow fan motor can give you the flexibility, performance and quiet operation needed to meet the expectations of your clients.

ECM Constant Airflow (Variable Speed) Fan Motor

The high efficiency Electrically Commutated Motor (ECM), available in 1/3hp to 1hp, provides constant airflow in a wide static pressure range up to 1 in.w.g. Optional in all unit sizes except 1/2 through 1 ton, this motor is a great choice in high filtration applications. The motor has a soft start/stop feature, keeping noise to a minimum. Passive dehumidification can be achieved with the constant airflow ECM by reducing nominal airflow by 15%. This control feature lowers air coil temperature and prevents over-cooling of the space when in dehumidification mode. The constant airflow ECM requires a neutral wire in a 460V application.

MERV-8 and MERV-13 Filters

The optional 2"" MERV-8 or -13 filter is most advantageous for premium air filtration on commercial HVAC projects. High efficiency filtration is a cost-effective way of upgrading air quality while maintaining low pressure drop and sustaining long service life. These filters effectively remove up to 98% of airborne matter, such as fine particulates, bacteria, smoke, gases and allergens including dust mites, pollen, mold spores, dust and smog. MERV-8 and MERV-13 rated filters are a minimum requirement for EQ credits 3.1 and 5 on LEED® projects. Note: MERV-13 factory option requires ECM Constant Airflow fan motor option. With the optional ECM constant airflow motor the EP is prepared to handle higher external pressure drops when utilizing the higher efficiency MERV-13 filters.

Blower and Motor

PSC blower motors are standard on unit sizes 1/2 through 1 ton. Multiple speed constant torque ECM motors are standard on units sizes 1 1/2 through 6 tons, allowing the user to select the correct speed to deliver the specified airflow and the design system static pressure.

DDC Controls and Zone Sensors

To complement the controller, Bosch Thermotechnology Corp. offers a line of intelligent zone sensors, which provide precision measurement and communication capabilities in an attractive low profile enclosure.

DDC Controls

The optional factory mounted DDC Controller is preprogrammed and installed on the unit with the Unit Protection Module (UPM) to be job site ready. With a factory-supplied DDC wall sensor, the unit will operate in a 100% stand-alone control mode or connect to a Building Automation System (BAS) using open protocols BACnet™, Modbus, N2 or LonWorks® (with an optional Lon card).
