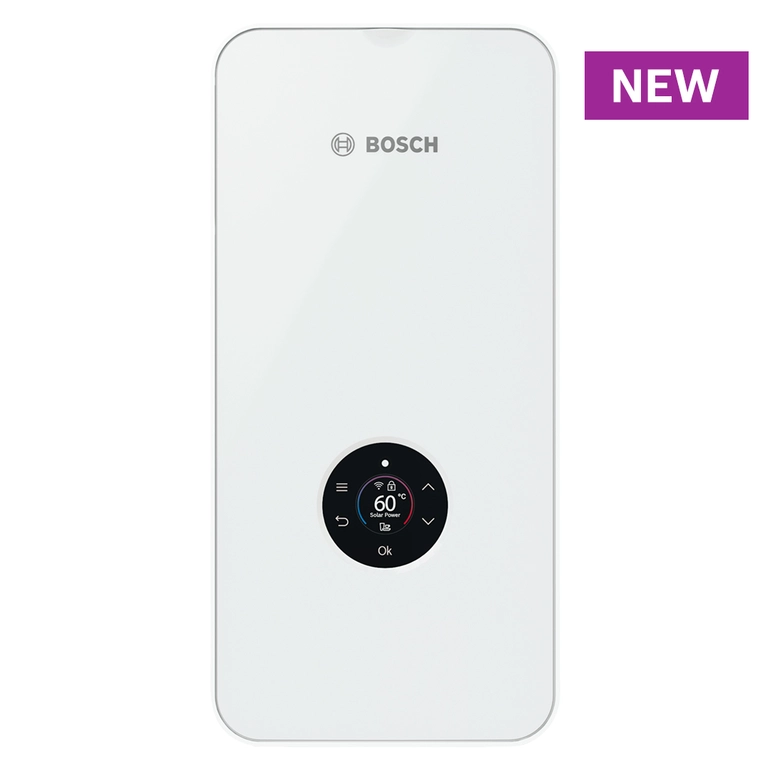

3-Phase Electric Instantaneous Water Heater
Tronic 8500i
Efficient Warm Water Supply with Many Convenience Functions
Tronic 8500i is Bosch’s most advanced water heater designed for maximum convenience and control. With integrated Wi-Fi, a multifunctional LED colour display, AquaStop® water safety, and features like water and electricity consumption indicators, multiple temperature memory modes, and child lock, it ensures top-tier performance and safety. The 8500i also offers quick installation via three simple steps, thanks to CLICKFIX 2.0.
- Made with German engineering.
- Available in a 60°C maximum water output temperature for multiple outlet applications.
- Built-in Wi-Fi for convenient smart device control through the Bosch HomeCom Easy app.

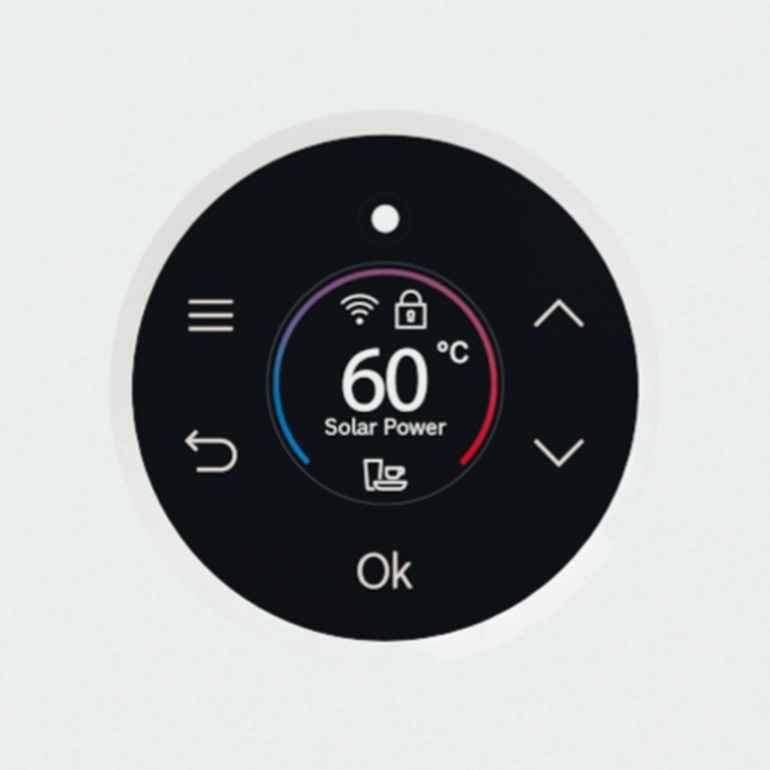

- Advanced, easy-to-use multifunctional LED colour display featuring temperature adjustment, consumption indicators for water and electricity, use-case temperature selection modes, child lock, and eco indication.
Benefits
Modern premium design and compact size
The Bosch Tronic 8500i Premium's modern and compact design complements any interior, offering high-quality materials for long-lasting durability.
Temperature stability is assured
Enjoy consistent and comfortable water temperatures with the Bosch Tronic 8500i. This intelligent 3-phase water heater prevents excessive water heating, ensuring energy efficiency and cost-effectiveness.
Built-in Wi-Fi gateway
A Wi-Fi Gateway Kit accessory is available for convenient smart device monitoring and control. With the HomeCom Easy app, you can manage your water heater from anywhere.
AquaStop® safety system
The AquaStop® safety system protects against water damage. If a leak is detected, the cold water inlet automatically shuts off once a certain amount of water has flowed, preventing any potential damage.
Easy installation with CLICKFIX 2.0
Installing the Bosch Tronic 8500i is fast and straightforward, thanks to advanced CLICKFIX 2.0 technology. The transparent backplate allows installers to easily locate drilling holes and adjust screws to ensure a perfect fit, whether installing a new unit or replacing an old one.
Technical Details and Documents
Choose product variant
-
Documents
All technical documents Show now Tronic 8500i Spec Sheet Download now -
Technical data
Product type, market-specific TR8501i 18 DESOAB
Energy efficiency 39 %
Height 484 mm
Width 236 mm
Depth 106 mm
Weight 4.42 kg
Nominal output 18 kW
Load profile S
Annual power consumption 476 kWh
Electrical fuse 25 A
Max. pressure on the domestic water side 10 bar
Protection class I
Protection rating (EN 60529) IP25
Part number 7736507512
